Speakers

PA Wall Speakers

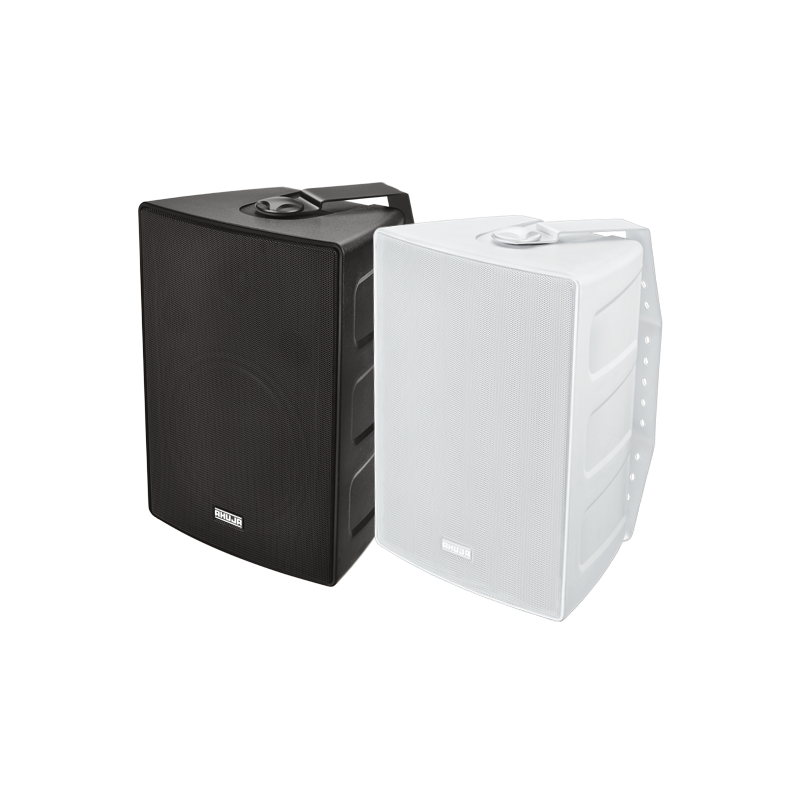

ASX-312B/312BT

30 Watts

2-Way Compact PA Wall Speakers

  • High fidelity 2-Way speaker system in compact & attractive Black or White plastic housing. The suffix B & BT denote Black cabinet, and W & WT denote White cabinet. Ideal for various indoor and outdoor (under eaves) applications in Airports, Banks, Schools, Hotels, Restaurants, Lounges, Hospitals, Showrooms etc.
  • Comprises of a Water Resistant PP coated cone Woofer, a Titanium Dome Tweeter and a 2-way Crossover Network.
  • ASX-312B, ASX-312W are low impedance 8W speakers.
  • ASX-312BT and ASX-312WT are for use on 100V line with power taps of 30W, 20W, 15W, 10W & 5W.
  • Easy power tap selection through a slotted rotary switch knob at the rear.
  • ‘U’ type bracket for convenient & firm mounting of the wall speaker.

POWER RATING

30W RMS/45W Max.

POWER TAPS

30W, 30/20/15/10/5W

IMPEDANCE/VOLTAGE

8Ω / 100V

FREQUENCY RESPONSE

75-20,000Hz

SPL at 1kHz (1W/1m)

87dB

SPEAKER

Woofer 100mm (4"), Tweeter 25mm (1")

DIMENSIONS

W180 × H248 × D140 mm

WEIGHT

2.45kg/2.92kg

Operation Manual

6728 KB

Product Literature

550 KB
