500 WATTS

Line Array Speaker

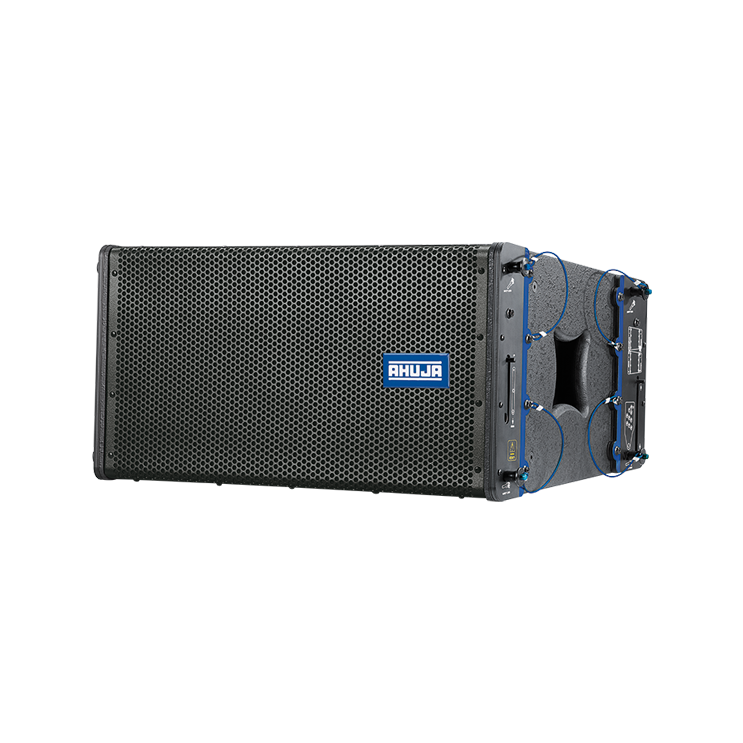

ALX-6000 is a compact single 30.48cm (12”) line array speaker system. Each module of ALX-6000 comprises of a powerful LF driver and a high performance HF driver to deliver crisp, clear and clean sound in a variety of indoor and outdoor installations.
Each line array cabinet is designed to provide controlled & coherent coverage pattern with excellent high frequency response.
omprises of a powerful HF driver with a waveguide horn for constant curvature line array system.
Simple rigging arrangement for quick & secure installation.
Professional 2-way passive crossover network with HF protection.
Strong, well braced & resonance free speaker cabinet in durable paint finish.
Heavy duty steel grille with acoustically transparent foam to protect speakers from various adverse working conditions.
A sturdy and rugged flybar frame is available for rigging the line array cabinets.
Suitable for a wide variety of applications in Fixed Installations, Rental, Djs and Live Sound Reinforcement.

send enquiry

‹ ›

Power Rating	500W RMS
Configuration	Two Way
Frequency Response	55-20,000Hz
Low Frequency Speaker	1 × 304.8mm (12”) Woofer
High Frequency Unit	1 x 38.1mm (1.5”) Throat Compression Driver
SPL (1W/1m)	96dB
Max Rated SPL	122dB
Nominal Impedance	8Ω
Horizontal Coverage Angle	120°
Vertical Coverage Angle	10°
Variable Splay Angles	0°, 1°, 2°, 3°, 4°, 5°, 6°, 7°, 8°
Connectors	2 Nos. of Speakon Sockets
Dimensions	W675 x H355 x D530 mm
Weight	48.50kg

Product Literature

798 KB

Speakers : Special Purpose Speakers

FEATURES :

ALX-6000 is a compact single 30.48cm (12”) line array speaker system. Each module of ALX-6000 comprises of a powerful LF driver and a high performance HF driver to deliver crisp, clear and clean sound in a variety of indoor and outdoor installations.
Each line array cabinet is designed to provide controlled & coherent coverage pattern with excellent high frequency response.
omprises of a powerful HF driver with a waveguide horn for constant curvature line array system.
Simple rigging arrangement for quick & secure installation.
Professional 2-way passive crossover network with HF protection.
Strong, well braced & resonance free speaker cabinet in durable paint finish.
Heavy duty steel grille with acoustically transparent foam to protect speakers from various adverse working conditions.
A sturdy and rugged flybar frame is available for rigging the line array cabinets.
Suitable for a wide variety of applications in Fixed Installations, Rental, Djs and Live Sound Reinforcement.

SPECIFICATIONS :

Power Rating	500W RMS
Configuration	Two Way
Frequency Response	55-20,000Hz
Low Frequency Speaker	1 × 304.8mm (12”) Woofer
High Frequency Unit	1 x 38.1mm (1.5”) Throat Compression Driver
SPL (1W/1m)	96dB
Max Rated SPL	122dB
Nominal Impedance	8Ω
Horizontal Coverage Angle	120°
Vertical Coverage Angle	10°
Variable Splay Angles	0°, 1°, 2°, 3°, 4°, 5°, 6°, 7°, 8°
Connectors	2 Nos. of Speakon Sockets
Dimensions	W675 x H355 x D530 mm
Weight	48.50kg
