Speakers

PA Speaker Systems

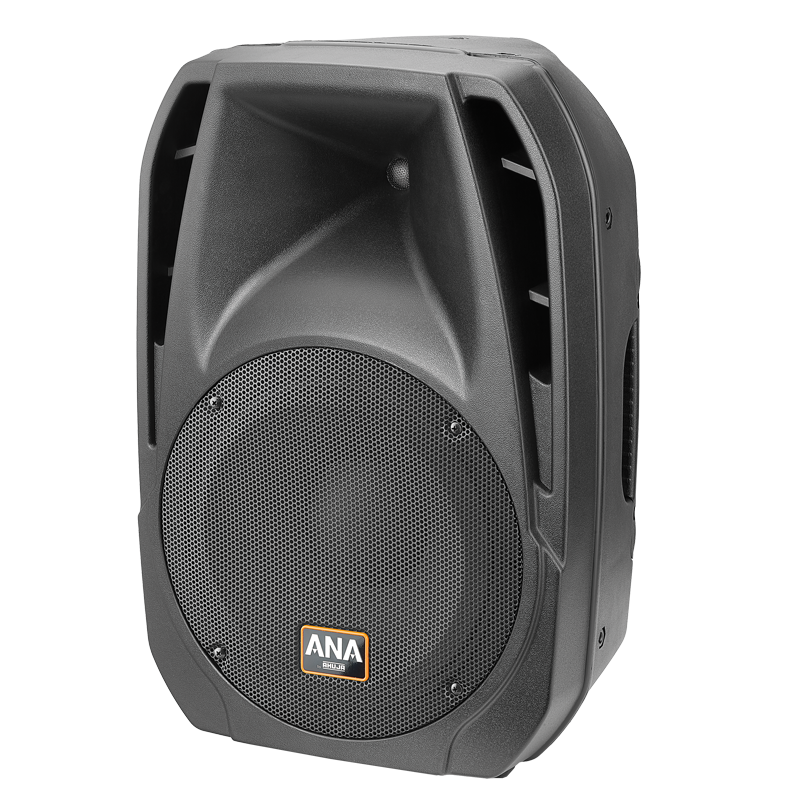

VX-400

400 WATTS

Moulded Cabinet Speaker Systems

  • High quality 400W, 2-Way PA speaker system comprises of a high performance 38.1cm (15”) LF speaker and a reliable HF driver. Ideal for use in a wide variety of speech & music applications.
  • Rugged & portable bass reflex cabinet moulded with a special polypropylene plastic material.
  • Built with a 38.1cm (15”) 400W reliable & efficient LF speaker.
  • High performance HF driver made with a 4.44cm (1.75”) voice coil & titanium diaphragm.
  • Equipped with a professional passive crossover network using low resistance inductors & high quality metallised polyester capacitors.
  • Special cabinet profile allows functional flexibility in various professional audio applications such as stage monitors, live sound reinforcement and installed sound systems.
  • A pole socket is provided at the bottom for easy stand mounting as well as wall mounting.
  • Three integrated M8 flying points on top side and right side of the cabinet enable vertical and horizontal suspension applications.

Power Rating

400W RMS/800W Programme

Configuration

Two Way

Frequency Response

45-18,000Hz

Low Frequency Speaker

1 x 381mm (15”), Ø76.2mm (3.0”) Copper Voice Coil

High Frequency Unit

Dynamic Horn, Ø44.45nn (1.75”) Voice Coil

SPL at (1W/1m)

98dB

Max. Rated SPL

124dB

Nominal impedance

8Ω

Port

Free Flow Flared

Input Connectors

2 Nos. of Speakon Sockets

Dimensions

W460 × H690 × D370 mm

Weight

22.10kg

Operation Manual

1608 KB

Product Literature

822 KB
