Portable PA

PA Active Speakers

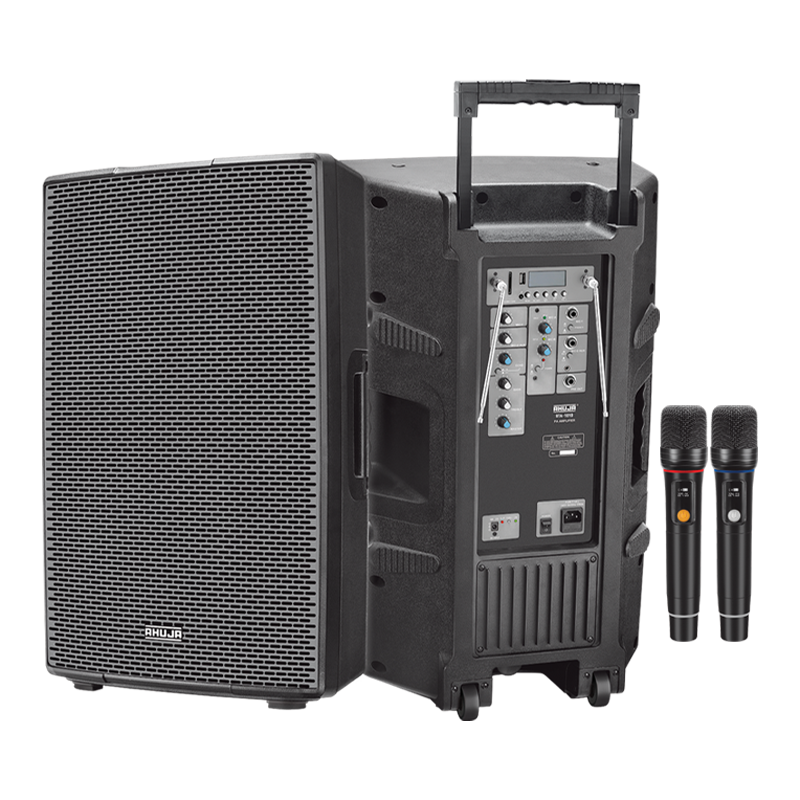

BTA-1010

90 WATTS

PA Amplifier Sets

  • Class D Bi-amplifier featuring attractive, elegant and stylish looking cabinet with Trolley System.
  • Two Mic inputs, Two Wireless Mics, one Aux input & one Music input.
  • Built-in 38.1 cm (15”) 8W speaker with dual voice coil & 8W HF driver.
  • Mic 1 has selectable priority over all other inputs.
  • Built-in MP3 player with Bluetooth, Recorder, SD card and Remote Control.
  • Built-in Digital Echo effects.
  • Active Bass & Treble controls for setting the desired tonal quality.
  • LED indications for low battery, charging & clip output.
  • Facility of Auto cut-off to prevent battery from deep discharge.
  • Three power source operation AC mains, External 12V DC or built-in 12V 9Ah rechargeable battery.
send enquiry
‹ ›

AMPLIFIER

.

Audio Output (BI-AMP)

90W Max.

Input Channels

2 × Mic 3mV/4.7kΩ, 1 × Aux 100 mV/47kΩ, Music 100mV/47kΩ, 2 × Wireless MIC

Preamp Output

200mV/600Ω

Tone Controls

Bass ±5dB at 100Hz, Treble ±5dB at 10kHz

Digital Player Player

MP3 player with USB, SD, MMC card reader, Recording Function and Bluetooth.

Power Requirements

AC : 220V-240V 50/60Hz, DC : 12V Car Battery (external), 12V 9Ah Rechargeable Battery (built-in)

Power Consumption

170VA

Protection

AC Fuse: 1A 250V (T 1A L)

Wireless Receiving Mode

Quartz Controlled Fixed Frequency

Wireless Range

Over 20m in Free Space (Line of Sight)

Dimension

W440 × H700 × D350 mm

Weight

18.80kg

TRANSMITTER

.

RF Output Power

10mW (Max.)

Max. Modulation

45dB

Frequency Response

50-15,000Hz

Battery

3V (2 × 1.5V AA Pencil Cells)

Dimension

Ø52 × L242 mm

Weight

140g (w/o battery)
Portable PA : PA Active Speakers
BTA-1010
90 WATTS
PA Amplifier Sets
FEATURES :
  • Class D Bi-amplifier featuring attractive, elegant and stylish looking cabinet with Trolley System.
  • Two Mic inputs, Two Wireless Mics, one Aux input & one Music input.
  • Built-in 38.1 cm (15”) 8W speaker with dual voice coil & 8W HF driver.
  • Mic 1 has selectable priority over all other inputs.
  • Built-in MP3 player with Bluetooth, Recorder, SD card and Remote Control.
  • Built-in Digital Echo effects.
  • Active Bass & Treble controls for setting the desired tonal quality.
  • LED indications for low battery, charging & clip output.
  • Facility of Auto cut-off to prevent battery from deep discharge.
  • Three power source operation AC mains, External 12V DC or built-in 12V 9Ah rechargeable battery.
SPECIFICATIONS :

AMPLIFIER

.

Audio Output (BI-AMP)

90W Max.

Input Channels

2 × Mic 3mV/4.7kΩ, 1 × Aux 100 mV/47kΩ, Music 100mV/47kΩ, 2 × Wireless MIC

Preamp Output

200mV/600Ω

Tone Controls

Bass ±5dB at 100Hz, Treble ±5dB at 10kHz

Digital Player Player

MP3 player with USB, SD, MMC card reader, Recording Function and Bluetooth.

Power Requirements

AC : 220V-240V 50/60Hz, DC : 12V Car Battery (external), 12V 9Ah Rechargeable Battery (built-in)

Power Consumption

170VA

Protection

AC Fuse: 1A 250V (T 1A L)

Wireless Receiving Mode

Quartz Controlled Fixed Frequency

Wireless Range

Over 20m in Free Space (Line of Sight)

Dimension

W440 × H700 × D350 mm

Weight

18.80kg

TRANSMITTER

.

RF Output Power

10mW (Max.)

Max. Modulation

45dB

Frequency Response

50-15,000Hz

Battery

3V (2 × 1.5V AA Pencil Cells)

Dimension

Ø52 × L242 mm

Weight

140g (w/o battery)
