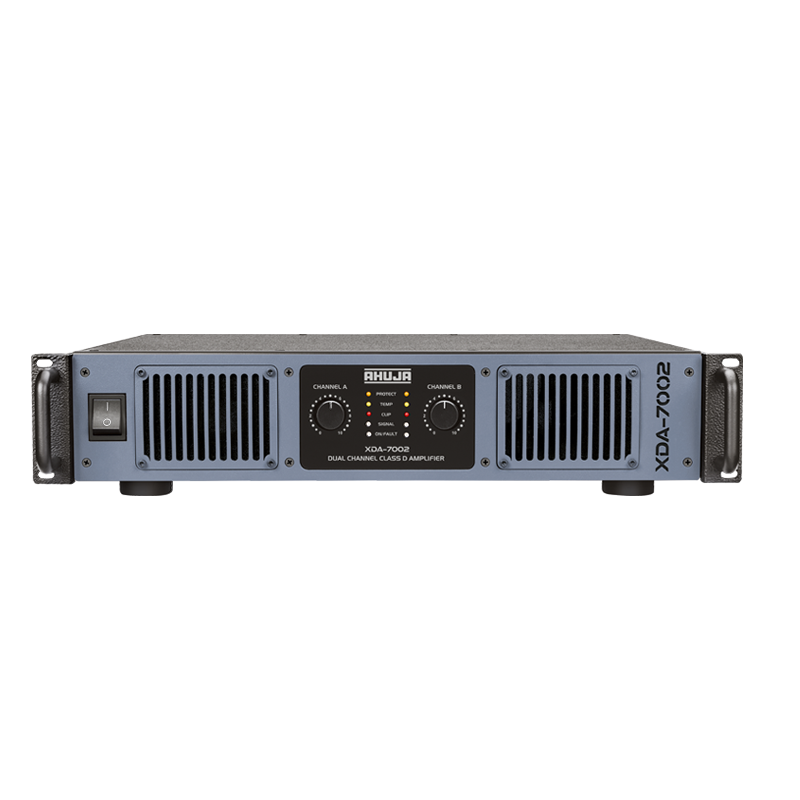

Dual Channel Class D Power Amplifier
|
Continuous Rated Power Stereo/Mono |
8Ω : 1350W + 1350W RMS, 4Ω : 2400W + 2400W RMS |
|
THD + N |
< 0.1% |
|
Frequency Response (-1dB) |
20-20,000Hz |
|
Low Pass Filter |
80/120Hz @ 24dB per octave |
|
Power Bandwidth (0.5% THD) |
20-20,000Hz |
|
Input Sensitivity |
0dBu (775mV) & 4dBu (1.23V) (Selectable) |
|
Input Impedance |
10k Unbalanced, 20k Balanced |
|
Signal To Noise Ratio |
> 100dB |
|
Channel Separation |
> 65dB at 1kHz |
|
Damping Factor (8W ) |
>1000 |
|
Slew Rate |
20V/µs |
|
Protections |
Temperature, DC, RFI, Short Circuit, Overload, Overvoltage, Built-in Limiter (ON/OFF); AC: Circuit Protector 16A; ± DC: Fuse 2×16A (T 16A L) |
|
Input Connectors |
2×XLR, Stereo Phone Jack 6.3mm |
|
Output Connectors |
Speakon 4-Way and heavy duty Binding Post for each channel |
|
Cooling |
2 × Variable Speed DC Fan with Temperature Sensing |
|
Front Panel Controls |
2×41 Step Level Attenuators |
|
Indicators |
Power ON/FAULT, Signal, Clip, Temperature, Protect (Ch. A & B) |
|
Power Consumption (Rated) |
5500VA @ 220-240V ~ 50/60Hz |
|
Dimensions |
W482 × H104 × D438mm |
|
Weight |
22.10kg |
