Speakers

PA Column Speakers

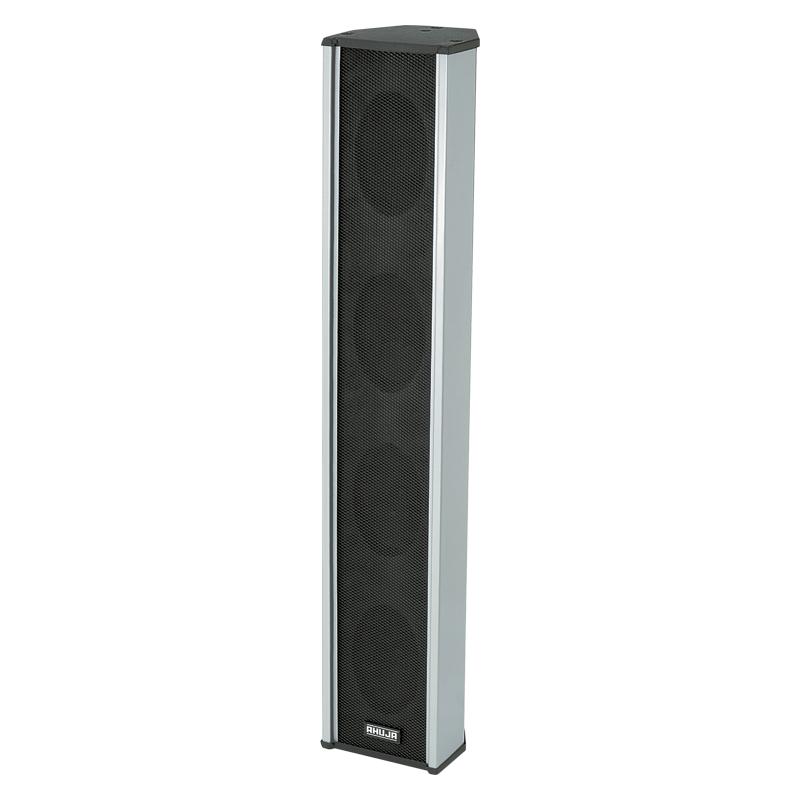

SCM-30/SCM-30T

20W/16Ω 20W/100V

PA Column Speakers

  • For Indoor & Outdoor applications such as in Halls, Auditoria, Airport Lounges.
  • Weather resistant — for use under roof eaves. Foam layer to protect speakers from dust.
  • Array of speakers radiate forward sound beam for wider audience coverage.
  • Mounting clamps & hardware supplied.
  • Column speakers in metal cabinet in silver-ash paint finish.
  • Speaker connections through a terminal strip at the rear.
  • Available in 100V line matching transformer version and low impedance version.
send enquiry
‹ ›

Input Power

20W RMS, 30W Max.

Power Taps

20W, 20/15/10W

Impedance/Voltage

16Ω, 100V

Frequency Response

150-10,000Hz

SPL at 1kHz

95dB/1W/1m

Speakers

4 × 152.4 mm (6”) × 101.6 mm (4”)

Dimensions

W165 × H885 × D145 mm

Weight

5.50kg, 6.07kg
Speakers : PA Column Speakers
SCM-30/SCM-30T
20W/16Ω 20W/100V
PA Column Speakers
FEATURES :
  • For Indoor & Outdoor applications such as in Halls, Auditoria, Airport Lounges.
  • Weather resistant — for use under roof eaves. Foam layer to protect speakers from dust.
  • Array of speakers radiate forward sound beam for wider audience coverage.
  • Mounting clamps & hardware supplied.
  • Column speakers in metal cabinet in silver-ash paint finish.
  • Speaker connections through a terminal strip at the rear.
  • Available in 100V line matching transformer version and low impedance version.
SPECIFICATIONS :

Input Power

20W RMS, 30W Max.

Power Taps

20W, 20/15/10W

Impedance/Voltage

16Ω, 100V

Frequency Response

150-10,000Hz

SPL at 1kHz

95dB/1W/1m

Speakers

4 × 152.4 mm (6”) × 101.6 mm (4”)

Dimensions

W165 × H885 × D145 mm

Weight

5.50kg, 6.07kg
