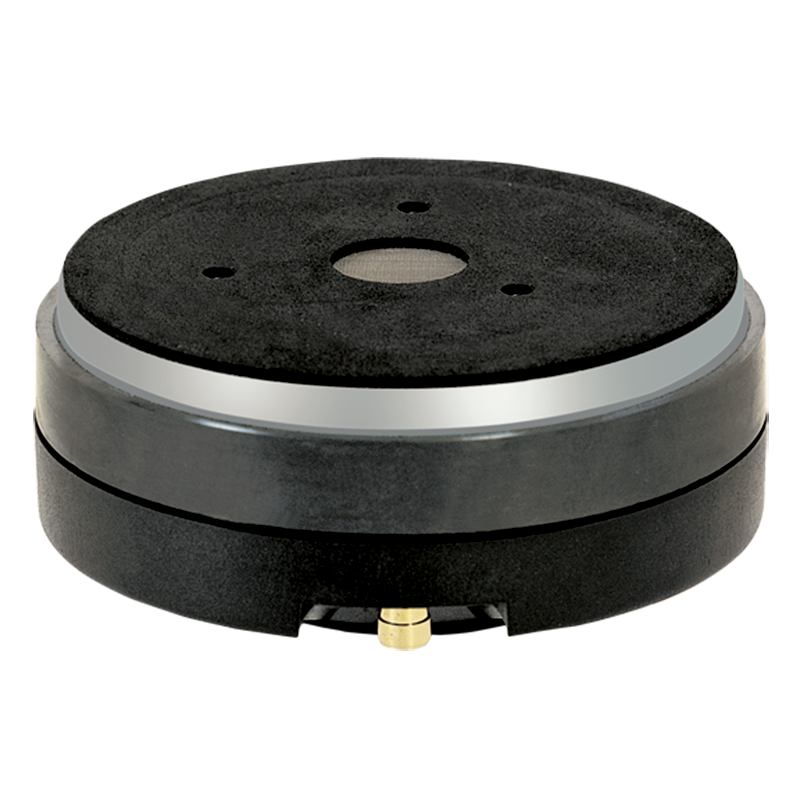

CD-80

80 Watts

PA Compression Driver

  • Ahuja introduces a professional compression driver CD-80, suitable for high power speaker systems. With a suitable horn it is ideal for use with low frequency speakers AHUJA   L15-MB300, L15-MB400 and L15-MB500.
  • 80 Watts power handling capacity
  • 600 Hz cut-off frequency
  • Recommended crossover frequency 2.5kHz.
  • Strontium ferrite magnet
  • High SPL of 108 dB
  • TITANIUM diaphragm
  • EDGE WOUND copper clad aluminium ribbon wire voice coil
  • Voice coil former of resin bonded KAPTON
send enquiry
‹ ›

Throat Diameter

25mm (1")

Mounting Type

Bolt-On

Nominal Impedance

8 ohm

D.C. Resistance

6.4 ohm

Power Capacity

80W (Continuous Program)

Sensitivity 1W/1M

108dB with H-4220

Usable Frequency Range

1.5K~18kHz

Recommended Crossover

2.7kHz 18dB/oct

Voice Coil Diameter

44.4 mm (1.75")

Flux Density

1.7 T

Magnet

Strontium Ferrite

Diaphragm

Titanium

Voice Coil Material

Edge Wound Copper Clad Aluminium Ribbon

Voice Coil Former

Resin Bonded Kapton

Weight

2.5kg
