Speakers

PA Wall Speakers

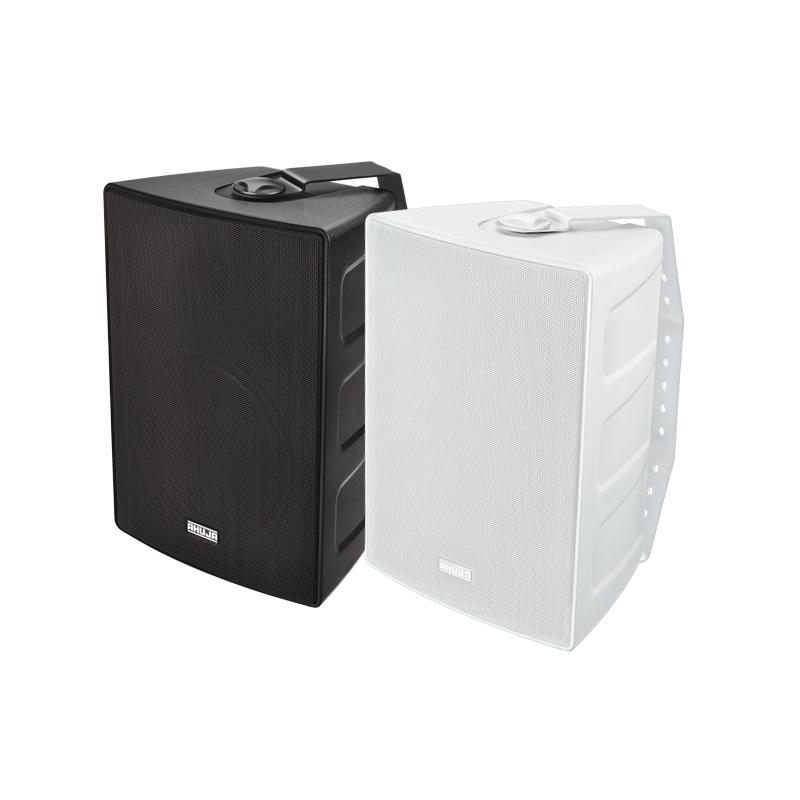

ASX-612B/612BT

60 WATTS

2-Way Compact PA Wall Speakers

  • High fidelity 2-Way speaker system in compact & attractive Black or White plastic housing. The suffix B & BT denote Black cabinet, and W & WT denote White cabinet.
  • Comprises of a Water Resistant PP coated cone Woofer, a Titanium Dome Tweeter and a 2-way Crossover Network.
  • ASX-612B and ASX-612W are low impedance 8Ω speakers.
  • ASX-612BT and ASX-612WT are meant for use on 100V line with power taps of 60W, 40W, 30W, 20W &10W.
  • Easy power tap selection through a slotted rotary switch knob at the rear.
  • ‘U’ type bracket for convenient & firm mounting of the wall speaker.
  • Ideal for various indoor and outdoor applications in Airports, Banks, Schools, Hotels, Hospitals, Showrooms etc.
send enquiry
‹ ›

Power Rating

60W RMS/90W Max.

Power Taps

60W, 60/40/30/20/10W

Impedance/Voltage

8Ω / 100V

Frequency Response

50-20,000Hz

SPL at 1kHz (1W/1m)

87dB

Speaker

Woofer 163mm (6½”), Tweeter 25mm (1”)

Dimensions

W215 × H310 × D175 mm

Weight

3.22kg/3.80kg

Operation Manual

8656 KB

Download
