Speakers

Special Purpose Speakers

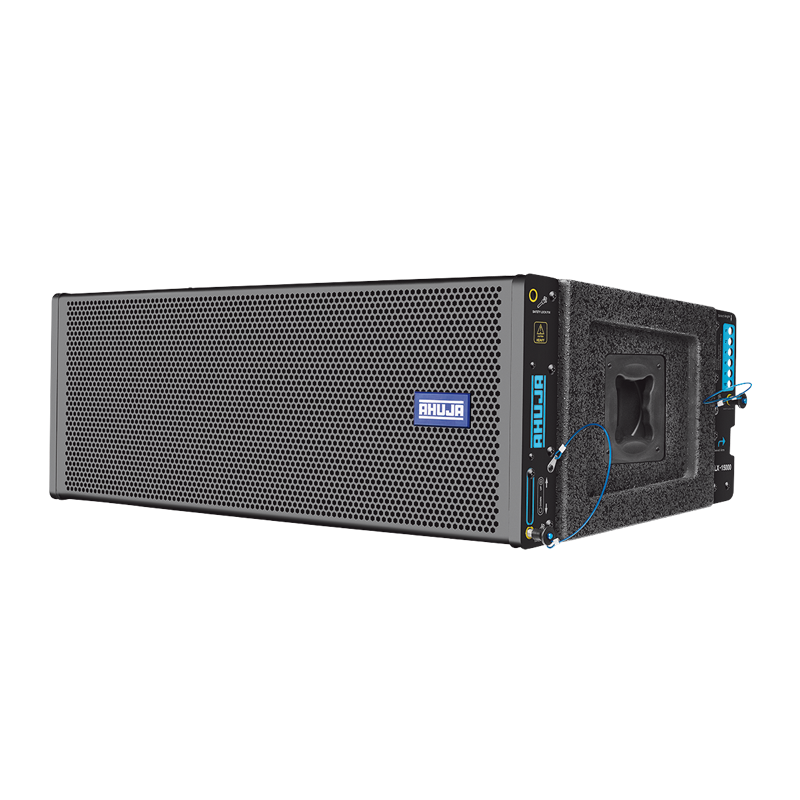

ALX-15000

1200 WATTS

Line Array Speaker

ALX-15000 is an attractive and rugged Line Array Loudspeaker. Each cabinet of ALX-15000 comprises of two high power 30.48 cm (12”) Neodymium LF drivers and a high performance HF driver to deliver crisp, loud and clear sound in a variety of indoor and outdoor applications.

  • Each line array cabinet is designed to provide controlled & coherent coverage pattern with excellent high frequency response.
  • Comprises of a powerful HF driver with a waveguide horn for constant curvature line array system.
  • Smart rigging arrangement for quick & secure installation.
  • Professional 2-way passive crossover network with HF protection.
  • Strong, attractive and well braced speaker cabinet in durable paint finish.
  • Heavy duty steel grille with acoustically transparent foam to protect speakers from various adverse working conditions.
  • A sturdy and rugged flybar frame is available for rigging the line array cabinets.
  • Suitable for a wide variety of applications in Fixed Installations, Rental, Djs and Live Sound Reinforcement.
send enquiry
‹ ›

Power Rating

1200W RMS

Configuration

Two Way

Frequency Response

58-20,000Hz

Low Frequency Speaker

2 × 304.8 mm (12”), Ø89mm (3.5”) Voice Coil

High Frequency Unit

Waveguide Horn with 1 × 38.1mm (1.5”) Throat Compression Driver

SPL (1W/1m)

97dB

Max Rated SPL

128dB

Nominal Impedance

8Ω

Horizontal Coverage Angle

120°

Vertical Coverage Angle

10°

Variable Splay Angles

0°, 2°, 4°, 6°, 8°, 10°

Connectors

2 Nos. of Speakon Sockets

Dimensions

W1050 x H360 x D530 mm

Weight

49.20kg

Operation Manual

6763 KB

Download

Print

Speakers : Special Purpose Speakers
ALX-15000
1200 WATTS
Line Array Speaker
FEATURES :

ALX-15000 is an attractive and rugged Line Array Loudspeaker. Each cabinet of ALX-15000 comprises of two high power 30.48 cm (12”) Neodymium LF drivers and a high performance HF driver to deliver crisp, loud and clear sound in a variety of indoor and outdoor applications.

  • Each line array cabinet is designed to provide controlled & coherent coverage pattern with excellent high frequency response.
  • Comprises of a powerful HF driver with a waveguide horn for constant curvature line array system.
  • Smart rigging arrangement for quick & secure installation.
  • Professional 2-way passive crossover network with HF protection.
  • Strong, attractive and well braced speaker cabinet in durable paint finish.
  • Heavy duty steel grille with acoustically transparent foam to protect speakers from various adverse working conditions.
  • A sturdy and rugged flybar frame is available for rigging the line array cabinets.
  • Suitable for a wide variety of applications in Fixed Installations, Rental, Djs and Live Sound Reinforcement.
SPECIFICATIONS :

Power Rating

1200W RMS

Configuration

Two Way

Frequency Response

58-20,000Hz

Low Frequency Speaker

2 × 304.8 mm (12”), Ø89mm (3.5”) Voice Coil

High Frequency Unit

Waveguide Horn with 1 × 38.1mm (1.5”) Throat Compression Driver

SPL (1W/1m)

97dB

Max Rated SPL

128dB

Nominal Impedance

8Ω

Horizontal Coverage Angle

120°

Vertical Coverage Angle

10°

Variable Splay Angles

0°, 2°, 4°, 6°, 8°, 10°

Connectors

2 Nos. of Speakon Sockets

Dimensions

W1050 x H360 x D530 mm

Weight

49.20kg
