MIXER AMPLIFIERS

350 WATTS with Built-in Digital Player

High Wattage PA Mixer Amplifier

7 Mic & 2 Aux Inputs.
Preamplifier and Line Output for connecting to a Booster Amplifier and for recording the programme.
Line Input for connecting the output from any external PA mixer or permitting SSA-350DP to be used as a Booster Power Amplifier.
Resettable circuit breaker for protection against overload and short circuit.
Box Speaker/Driver Unit selector switch. Bass boost defeated at Driver Unit position for safer operation of driver units.
Instant transfer to DC power (Car Battery) if AC power fails.
Built-in MP3 player facility with USB, SD and MMC Card Reader, Bluetooth.

send enquiry

‹ ›

Power Output	450W Max., 350W RMS at 10% THD; 320W RMS at 5% THD, 300W RMS at 2% THD
Output Regulation	≤ 2 dB, no load to full load at 1kHz
Input Channels	7 × Mic 0.8mV/4.7kΩ, 1 × Aux 100mV/470kΩ; 1 × Aux 200mV/470kΩ, 1 × Line 1V/50kΩ
Frequency Response	50-15,000Hz ±3dB
Signal to Noise Ratio	60dB
Tone Controls	Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz
Output	Preamp 200mV/600Ω, Line 1V/1kΩ
Speaker Output	4Ω, 8Ω, 70V & 100V
Digital Player	MP3 Player with USB, SD and MMC Card Reader, Bluetooth
Power Supply	AC: 220-240V 50/60Hz DC: 36V (3 ×12V Car Battery)
Power Consumption	AC: 660VA DC: 6A
Dimensions	W480 × H160 × D360 mm
Weight	18.96kg

Operation Manual

8055 KB

MIXER AMPLIFIERS : High Wattage PA Mixer Amplifiers

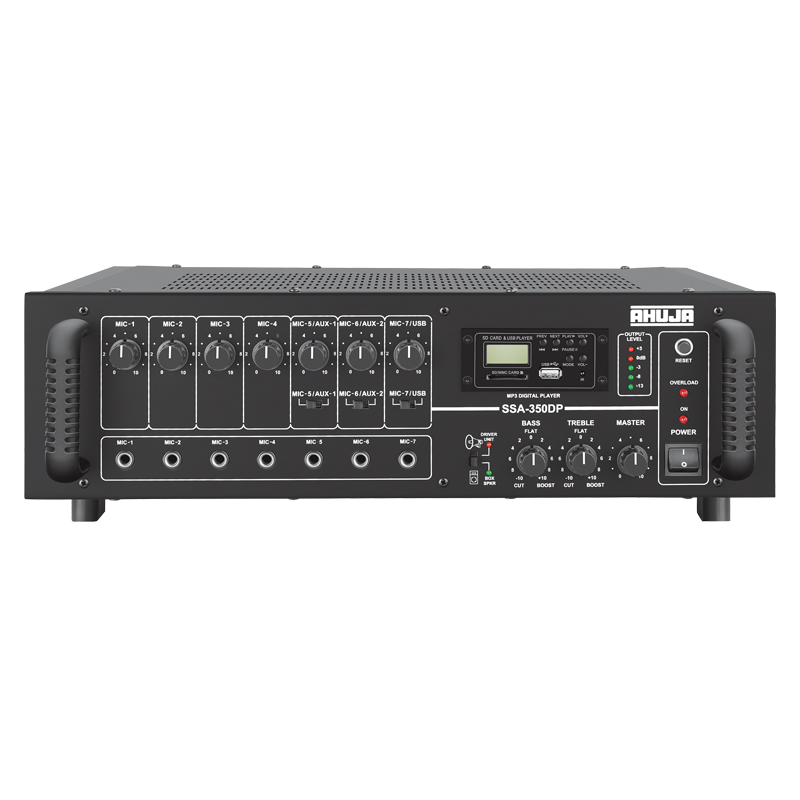

	SSA-350DP
	350 WATTS with Built-in Digital Player
	High Wattage PA Mixer Amplifier

FEATURES :

7 Mic & 2 Aux Inputs.
Preamplifier and Line Output for connecting to a Booster Amplifier and for recording the programme.
Line Input for connecting the output from any external PA mixer or permitting SSA-350DP to be used as a Booster Power Amplifier.
Resettable circuit breaker for protection against overload and short circuit.
Box Speaker/Driver Unit selector switch. Bass boost defeated at Driver Unit position for safer operation of driver units.
Instant transfer to DC power (Car Battery) if AC power fails.
Built-in MP3 player facility with USB, SD and MMC Card Reader, Bluetooth.

SPECIFICATIONS :

Power Output	450W Max., 350W RMS at 10% THD; 320W RMS at 5% THD, 300W RMS at 2% THD
Output Regulation	≤ 2 dB, no load to full load at 1kHz
Input Channels	7 × Mic 0.8mV/4.7kΩ, 1 × Aux 100mV/470kΩ; 1 × Aux 200mV/470kΩ, 1 × Line 1V/50kΩ
Frequency Response	50-15,000Hz ±3dB
Signal to Noise Ratio	60dB
Tone Controls	Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz
Output	Preamp 200mV/600Ω, Line 1V/1kΩ
Speaker Output	4Ω, 8Ω, 70V & 100V
Digital Player	MP3 Player with USB, SD and MMC Card Reader, Bluetooth
Power Supply	AC: 220-240V 50/60Hz DC: 36V (3 ×12V Car Battery)
Power Consumption	AC: 660VA DC: 6A
Dimensions	W480 × H160 × D360 mm
Weight	18.96kg
