MIXER AMPLIFIERS

MEDIUM WATTAGE PA MIXER AMPLIFIERS

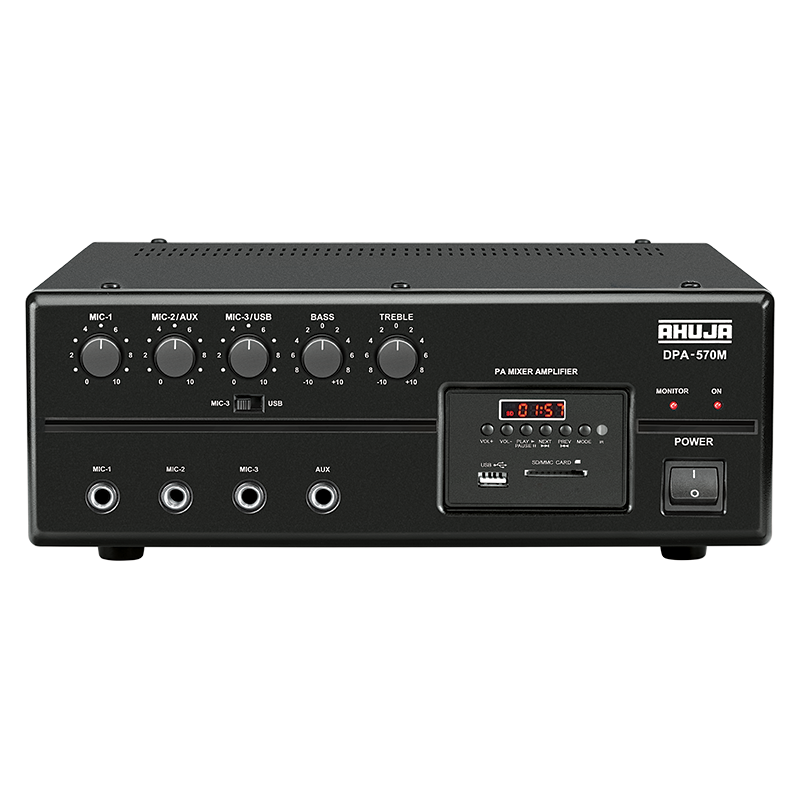

DPA-570®M

50 WATTS WITH BUILT-IN DIGITAL PLAYER

MEDIUM WATTAGE PA MIXER AMPLIFIER

  • 3 Mic & 1 Aux Input.
  • Built-in MP3 player with USB reader and remote control.
  • Bluetooth facility.
  • Line Output for connecting to a Booster Amplifier.
  • Cut and Boost type Bass & Treble controls.
  • Instant transfer to DC Power (Car Battery) if AC power fails.

Power Output

75W Max., 50W RMS at 10% THD, 45W RMS at 5% THD

Output Regulation

≤ 2 dB, no load to full load at 1kHz

Input Channels

3 × Mic 0.6mV/4.7kΩ, 1×Aux 100mV/330kΩ

Frequency Response

50-15,000Hz ±3dB

Signal to Noise Ratio

55dB

Tone Controls

Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz, Line: 400mV/3.5kΩ

Speaker Outputs

4Ω, 8Ω, 16Ω & 100V

Digital Player

MP3 Player with USB, SD, MMC Card Reader & Bluetooth

Power Supply

AC: 220-240V 50/60Hz, DC: 12-14V Car Battery)

Power Consumption

AC: 90VA DC: 3.1A

Dimensions

W305 × H120 × D305 mm

Weight

6.20kg
