MIXER AMPLIFIERS

MEDIUM WATTAGE PA MIXER AMPLIFIERS

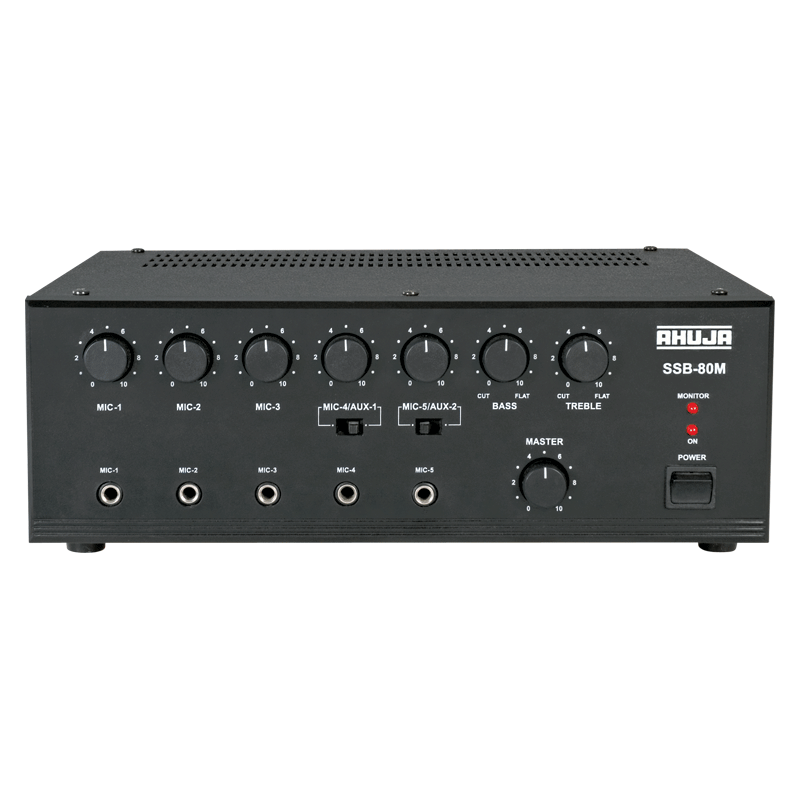

SSB-80®M

80 WATTS

MEDIUM WATTAGE PA MIXER AMPLIFIER

  • 5 Mic & 2 Aux Inputs.
  • Preamplifier Output for connecting to a Booster Amplifier and for recording the programme.
  • Cut type Bass & Treble controls.
  • Instant transfer to DC power (Car Battery) if AC power fails.
send enquiry
‹ ›

Power Output

110W Max., 80W RMS at 10% THD, 75W RMS at 5% THD, 60W RMS at 2% THD

Output Regulation

≤ 2 dB, no load to full load at 1kHz

Input Channels

5 × Mic 0.65mV/4.7kΩ, 2 × Aux 100mV/470kΩ

Frequency Response

65-15,000Hz ±3dB

Signal to Noise Ratio

60dB

Tone Controls

Bass: -10dB at 100Hz, Treble: -10dB at 10kHz

Outputs

Preamp 200mV/600Ω

Speaker Outputs

4Ω, 8Ω, 16Ω, 70V & 100V

Power Supply

AC: 220-240V 50/60Hz DC: 12V (12V Car Battery)

Power Consumption

AC: 180VA DC: 3A

Dimensions

W355 × H133 × D285 mm

Weight

8.5kg

Operation Manual

3685 KB

Download

Print

MIXER AMPLIFIERS : MEDIUM WATTAGE PA MIXER AMPLIFIERS
SSB-80®M
80 WATTS
MEDIUM WATTAGE PA MIXER AMPLIFIER
FEATURES :
  • 5 Mic & 2 Aux Inputs.
  • Preamplifier Output for connecting to a Booster Amplifier and for recording the programme.
  • Cut type Bass & Treble controls.
  • Instant transfer to DC power (Car Battery) if AC power fails.
SPECIFICATIONS :

Power Output

110W Max., 80W RMS at 10% THD, 75W RMS at 5% THD, 60W RMS at 2% THD

Output Regulation

≤ 2 dB, no load to full load at 1kHz

Input Channels

5 × Mic 0.65mV/4.7kΩ, 2 × Aux 100mV/470kΩ

Frequency Response

65-15,000Hz ±3dB

Signal to Noise Ratio

60dB

Tone Controls

Bass: -10dB at 100Hz, Treble: -10dB at 10kHz

Outputs

Preamp 200mV/600Ω

Speaker Outputs

4Ω, 8Ω, 16Ω, 70V & 100V

Power Supply

AC: 220-240V 50/60Hz DC: 12V (12V Car Battery)

Power Consumption

AC: 180VA DC: 3A

Dimensions

W355 × H133 × D285 mm

Weight

8.5kg
