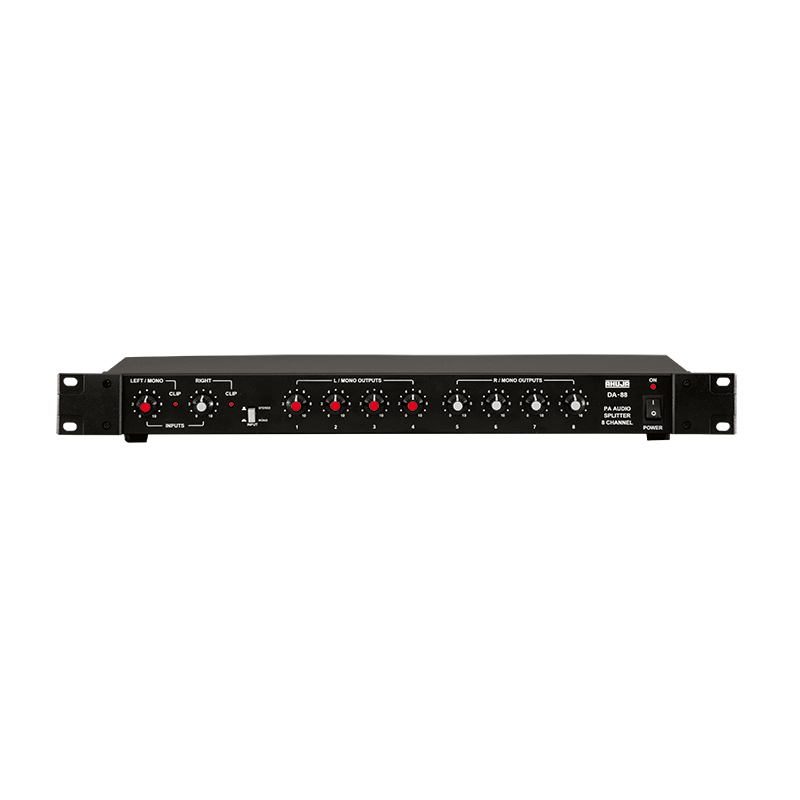

PA Audio Splitter

AC Operation

Compact and rugged professional line level signal splitter.
Designed for use in a wide variety of indoor and outdoor PA applications.
Accepts Line Level Stereo as well as Mono inputs through F/XLR connector as well as 6.3mm (1/4”) stereo phone jack sockets.
Provides four stereo balanced outputs or eight mono balanced outputs through M/XLR connectors.
Individual volume control for each input & output channel.
Separate clip LED indicator for Left and Right input signal.
Easy to operate Stereo/Mono push switch, provided on front panel.
Operates on AC mains.
19” rack mountable in 1U size and usable as a table top unit also.

send enquiry

‹ ›

Operation Manual

3704 KB

Product Literature

1522 KB

Mixers : PA Effect Processors

FEATURES :

Compact and rugged professional line level signal splitter.
Designed for use in a wide variety of indoor and outdoor PA applications.
Accepts Line Level Stereo as well as Mono inputs through F/XLR connector as well as 6.3mm (1/4”) stereo phone jack sockets.
Provides four stereo balanced outputs or eight mono balanced outputs through M/XLR connectors.
Individual volume control for each input & output channel.
Separate clip LED indicator for Left and Right input signal.
Easy to operate Stereo/Mono push switch, provided on front panel.
Operates on AC mains.
19” rack mountable in 1U size and usable as a table top unit also.

SPECIFICATIONS :
