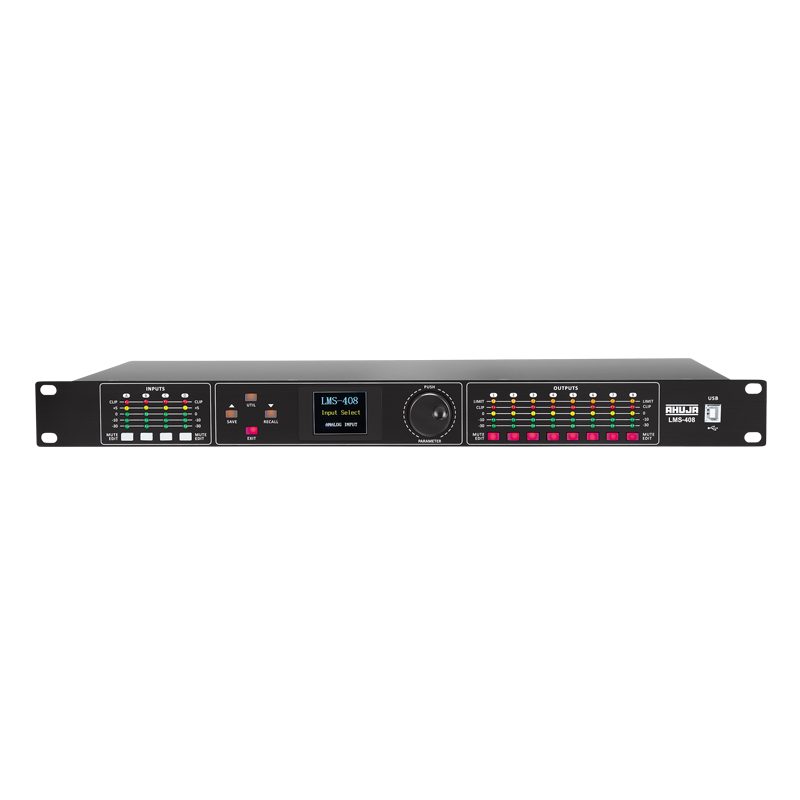

LMS-408

Loudspeaker Management System

.

The LMS-408 is a premium 4 IN / 8 OUT Loudspeaker Management System. With multiple features and easy to use PC software, it provides the best sonic control over the speakers. Ideal for Live, Touring, Installations and PA Applications.

  • 32-bit DSP, 48kHz sampling rate, 24bit AD/DA convertor.
  • Input settings include High-cut, Low-cut, 5 band PEQ, Noise gate, Gain, Mute, Phase and Link adjustment.
  • Output settings include Crossover, 7 band PEQ, Gain, Mute, Compressor/Limiter, Phase, Delay and Link adjustment.
  • Matrix selection for inputs and outputs each input and output channel name can be chaged.
  • High-cut, low-cut filter types can be selected as Butterworth, Link Witz-Riley, or Bessel with slopes from 6dB to 48dB/Octave.
  • Compressor/limiter threshold, ratio, attack time and release time can be adjusted continuously for outputs.
  • Delay time range is 680ms for output channels.
  • Preset settings can be copied for every single channel. Linked channels will have automatic setting adjustment.
  • Every input and output channel PEQ curve adjustment graph can be viewed in respective input/output channels.
  • Built-in signal generator with Pink noise, White noise and 20 to 20kHz Sine wave.
send enquiry
‹ ›

Frequency Response

20Hz-20,000Hz, -0.3dBu

Signal to Noise Ratio

>105 dBu

THD

<0.008 at 1kHz(0dBu)

Crosstalk

>70dBu

Input

Balanced XLR

Max. Input Level

+15dBu

Impedance

20K/Stereo; 10K/MONO

Output

Balanced XLR

Max. Output Level

+15dBu

Impedance

<500Ω

Digital Processing

24-bit sigma-delta converters 48kHz sampling rates

Display

Dot matrix screen display

Power Supply

AC: 220-240V 50/60Hz

Protection

AC: Fuse 1 × 2A (T 2A L)

Dimension

W482 × H44 × D210mm

Weight

2.42 kg
