POWER AMPLIFIERS

Dual Channel Power Amplifiers

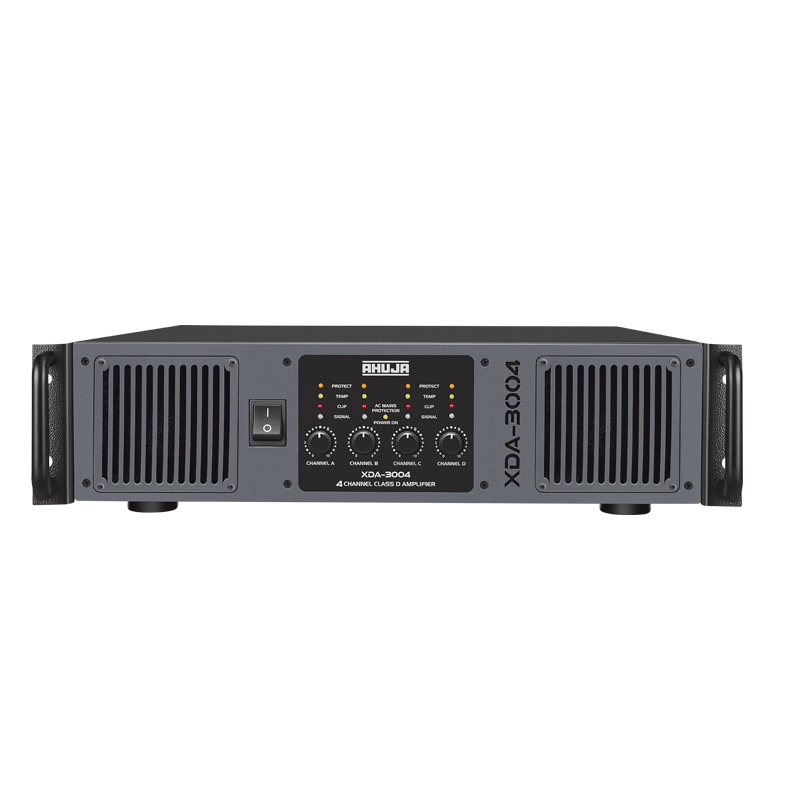

XDA-3004

4× 1200 WATTS

QUAD CHANNEL CLASS D POWER AMPLIFIERS

  • Four Channel Class D Power Amplifier.
  • 1200 Watts rated output from each channel .
  • Three selectable modes of operation ie., Individual, Dual and ALL.
  • Built-in Limiter ON/OFF circuit.
  • Toroidal Transformer power supply.
  • Two selectable input sensitivities.
  • Built-in Amplifier Protection system: DC offset, HF, Short circuit, Thermal, Overload, Overvoltage & Clip Monitoring.
  • Rack mountable in 3U Size.
  • BIS approved.
send enquiry
‹ ›

Continuous Rated Power Stereo/Mono

8Ω : 700W + 700W + 700W + 700W RMS, 4Ω : 1200W + 1200W + 1200W + 1200W RMS

THD + N

< 0.1%

Frequency Response (-1dB)

20-20,000Hz

Power Bandwidth (0.5% THD)

20-20,000Hz

Input Sensitivity

0dBu (775mV) & 4dBu (1.23V) (Selectable)

Input Impedance

10k Unbalanced, 20k Balanced

Signal to Noise Ratio

> 100dB

Channel Separation

> 65dB at 1kHz

Damping Factor (8Ω)

>1000

Slew Rate

20V/µs

Protections

Temperature, DC, RFI, Short Circuit, Overload, Overvoltage, Built-in Limiter (ON/OFF) AC: Circuit Protector 20A; ± DC: Fuse 2×12A (T 12A L) for each channel

Input Connectors

4×XLR, Stereo Phone Jack 6.3mm

Output Connectors

Speakon 4-Way for each channel

Cooling

4 × Variable Speed DC Fan with Temperature Sensing

Front Panel Controls

4×41 Step Level Attenuators

Indicators

Power ON/AC Mains Protection, Signal, Clip, Temperature, Protect (Ch. A, B, C & D)

Power Consumption (Rated)

5620W; 6460va @ 220-240V ~ 50/60Hz

Dimensions

W482 × H126 × D540mm

Weight

28.50kg
