Speakers

PA Horn Speakers

UHC Series

100V

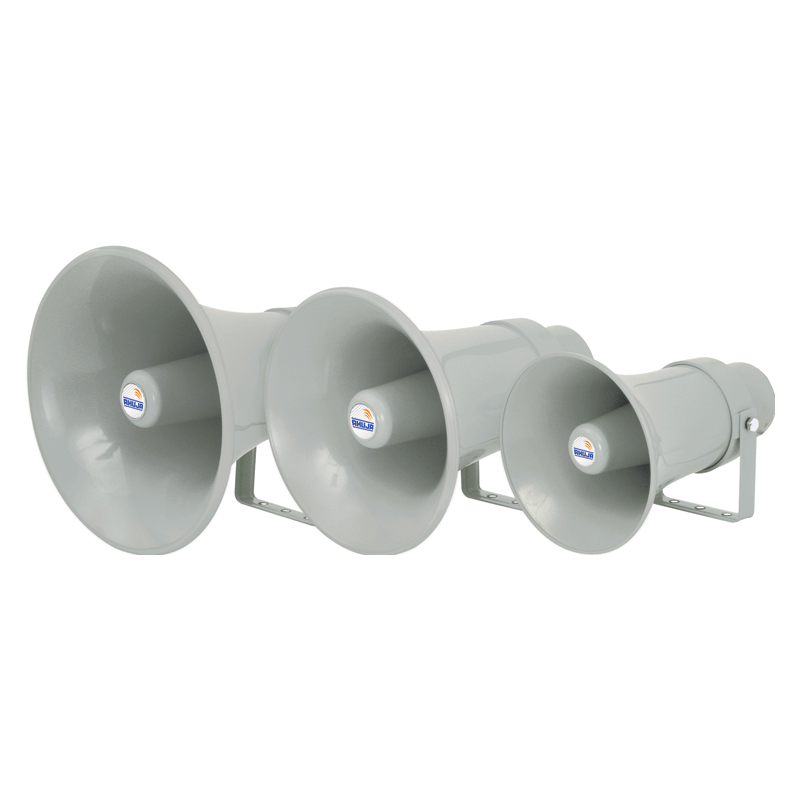

PA Horn Speakers

  • Ahuja high quality, weather proof horn speakers are compact, light weight and rugged. They are moulded in tough UV protected ABS plastic for longer lasting finish.
  • The specifications and construction of these are similar to the low impedance horn speakers. These models have been provided with 100V line matching transformers with multiple taps/impedance easily selectable by changing the position of the rotary switch at the rear of the sealed assembly.
  • These 100V models are ideal for installations where long speaker cables are used, to avoid power loss in the cables.
  • They meet European Union regulations and comply with low voltage directive standard EN 60065. Degree of protection
  • IP 66 is provided against foreign particles such as dust and jets of water, thus making them ideal for outdoor use.

UHC-30XT

.

Input Power

30W RMS/45W Max.

Power Taps

30/25/20/15/10/5W

Impedance

330/400/500/670/1k/2kΩ

Frequency Response

240-10,000Hz

SPL at 1kHz

108dB/1W/1m, 123dB/30W/1m

Dimensions

ø313 (L315) mm

Weight

2.39kg

Material

ABS (UV Protected)

UHC-25XT

.

Input Power

25W RMS/38W Max.

Power Taps

25/20/15/10/5W

Impedance

400/500/670/1k/2kΩ

Frequency Response

250-10,000Hz

SPL at 1kHz

108dB/1W/1m, 122dB/25W/1m

Dimensions

ø274 (L310) mm

Weight

2.34kg

Material

ABS (UV Protected)

UHC-15XT

.

Input Power

15W RMS/23W Max.

Power Taps

15/10/5/2.5W

Impedance

670/1k/2k/4kΩ

Frequency Response

275-7,000Hz

SPL at 1kHz

106dB/1W/1m, 118dB/15W/1m

Dimensions

ø205 (L270) mm

Weight

1.78kg

Material

ABS (UV Protected)

Operation Manual

2531 KB
