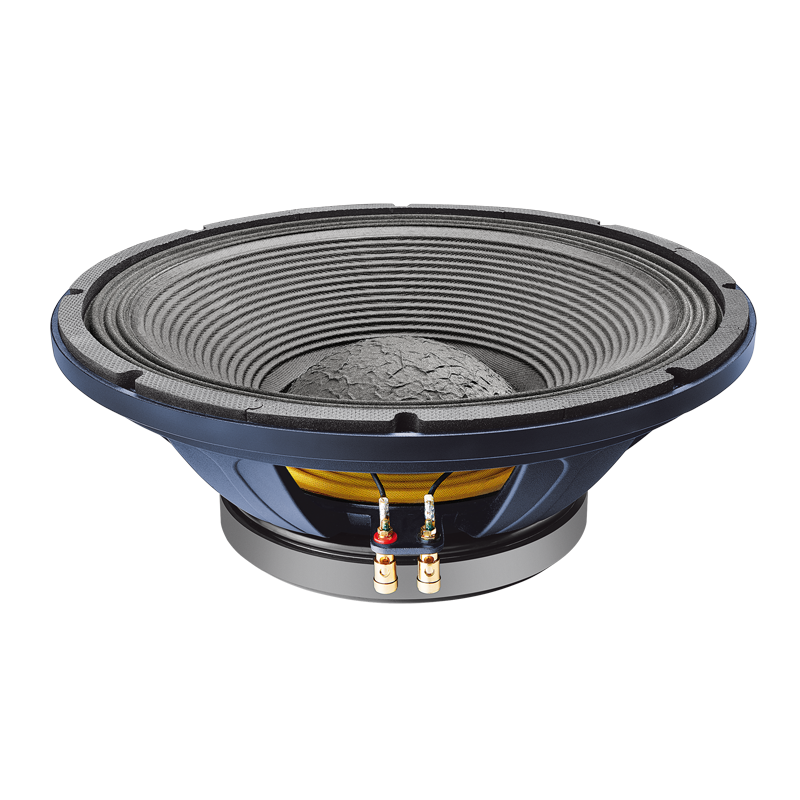

High power 38.1cm (15”) low frequency speaker
|
Power Rating |
700W RMS/1400W Programme |
|
Nominal Diameter |
380 mm (15”) |
|
Nominal Impedance |
8Ω |
|
Sensitivity (1W/1m ) |
97dB |
|
Magnet Weight |
2.85kg |
|
Resonant Frequency (Fs) |
50Hz |
|
DC Resistance (Re) |
5.1Ω |
|
Electromagnetic Q (Qes) |
0.32 |
|
Mechanical Q (Qms) |
5.91 |
|
Total Q (Qts) |
0.30 |
|
Compliance Equivalent Volume (VAS) |
109Litr |
|
Surface Area of Cone |
(Sd) 830cm2 |
|
Reference Efficiency (ηo) |
3.5% |
|
Voice Coil |
4.0” |
|
Overhang (Xmax) |
3.6 mm |
|
Moving Mass (Mms) |
97.60gm |
|
BL Product (BL) |
22.92TM |
|
Coil Inductance (Le) |
1.60mH |
|
Overall Diameter |
390 mm |
|
Depth |
142 mm |
|
Baffle Hole Diameter |
357 mm |
|
Bolt Mount Diameter (PCD) |
372 mm (8 Bolts) |
|
Weight |
11.00kg |
