Speakers

1300 Watts

Super Power 18” Extended Low Frequency Speaker

1300W RMS continuous power handling.
11.43cm (4.5") I/O Copper voice coil for higher efficiency.
Sensitivity 97dB/1W/1m.
For use in Professional High Power sub-woofer Speaker Systems.
Deep low frequency response makes it ideal choice for Cinema, Auditoria and Stage applications.

send enquiry

‹ ›

Power Rating	1300W RMS/2600W Programme
Nominal Diameter	460 mm (18”)
Nominal Impedance	8Ω
Sensitivity (1W/1m )	97dB
Resonant FrequenceY (Fs)	36Hz
Electromagnetic Q (Qes)	0.360
Mechanical Q (Qms)	25.4
Total Q (Qts)	0.355
Compliance Equivalent Volume (VAS)	142.8 Litr
Surface Area of Cone (Sd)	1219cm2
Reference Efficiency (ηo)	1.8%
Voice Coil Overhang Xmax	9.4 mm
Moving Mass Mms	283.2 gm
BI Product BL	29.5 TM
Coil Inductance Le	1.07 mH
Overall Diameter	468 mm
Depth	220 mm
Baffle Hole Diameter	440 mm
Bolt Mount Diameter (PCD)	448 mm (8 Bolts)
Weight	17.43kg Approx.

Operation Manual

4243 KB

Speakers : Professional PA Speakers

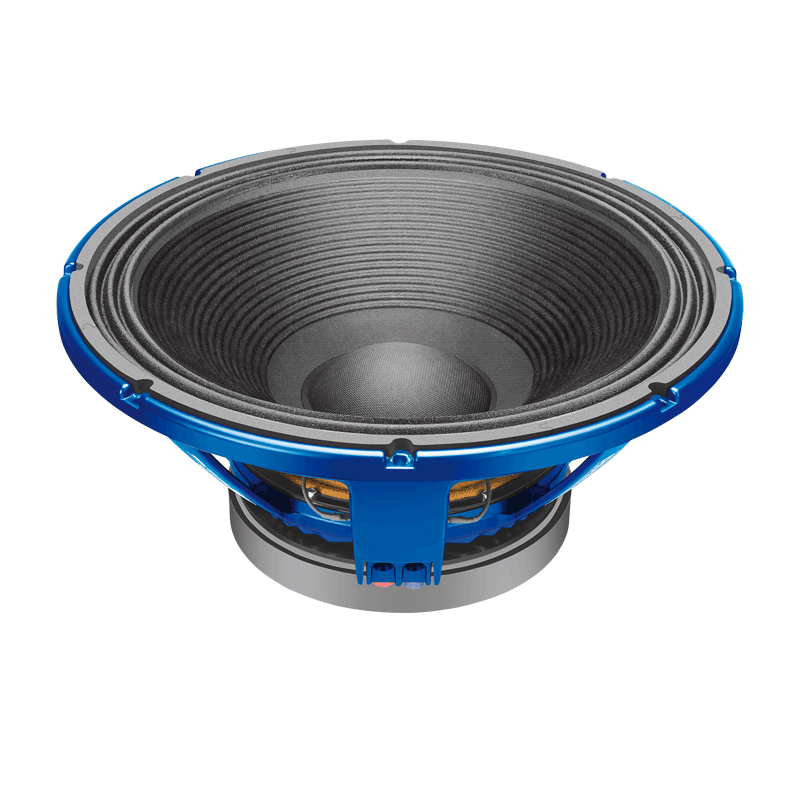

	THUNDER1845
	1300 Watts
	Super Power 18” Extended Low Frequency Speaker

FEATURES :

1300W RMS continuous power handling.
11.43cm (4.5") I/O Copper voice coil for higher efficiency.
Sensitivity 97dB/1W/1m.
For use in Professional High Power sub-woofer Speaker Systems.
Deep low frequency response makes it ideal choice for Cinema, Auditoria and Stage applications.

SPECIFICATIONS :

Power Rating	1300W RMS/2600W Programme
Nominal Diameter	460 mm (18”)
Nominal Impedance	8Ω
Sensitivity (1W/1m )	97dB
Resonant FrequenceY (Fs)	36Hz
Electromagnetic Q (Qes)	0.360
Mechanical Q (Qms)	25.4
Total Q (Qts)	0.355
Compliance Equivalent Volume (VAS)	142.8 Litr
Surface Area of Cone (Sd)	1219cm2
Reference Efficiency (ηo)	1.8%
Voice Coil Overhang Xmax	9.4 mm
Moving Mass Mms	283.2 gm
BI Product BL	29.5 TM
Coil Inductance Le	1.07 mH
Overall Diameter	468 mm
Depth	220 mm
Baffle Hole Diameter	440 mm
Bolt Mount Diameter (PCD)	448 mm (8 Bolts)
Weight	17.43kg Approx.
