Speakers

Professional PA Speakers

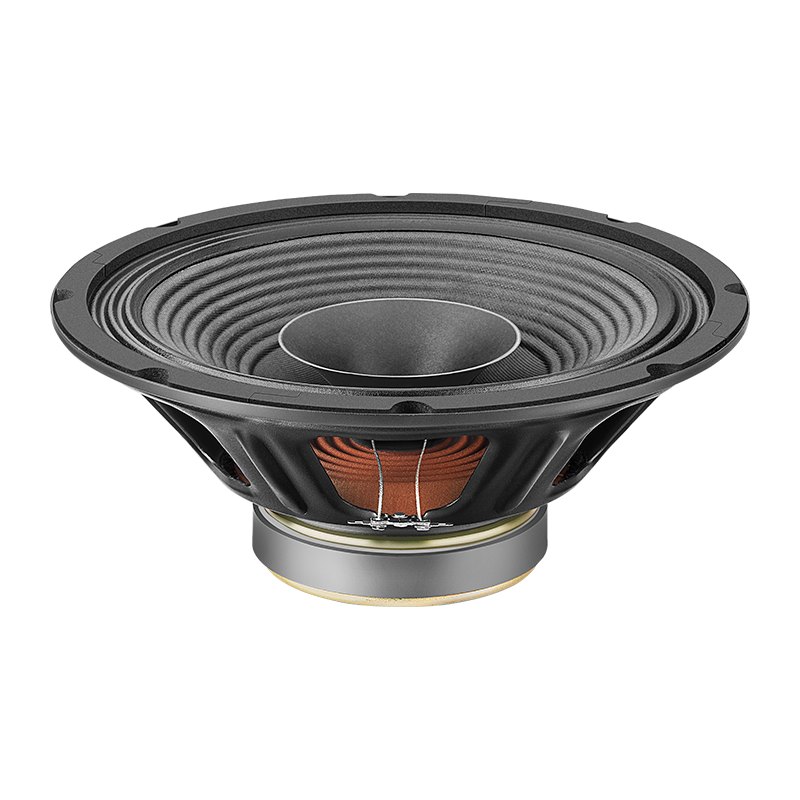

SK-12FR®X/FR®Z

100 WATTS

High Efficiency 30.48mm (12”) Dual Cone Full Range Speaker

  • They are 30.48CM (12") dual cone full range PA speakers with a very wide frequency range 55-16,000Hz.
  • Impedance of SK-12FRX is 8Ω and SK-12FRZ is 16Ω.
  • High quality specially designed imported parts for low distortion and a clean transparent sound.

Power Rating

100W RMS

Nominal Diameter

305mm (12”)

Nominal Impedance

8Ω/16Ω

Sensitivity (1W/1m )

97dB

Magnet Weight

1.1kg

Resonant FrequenceY (Fs)

50Hz

DC Resistance (Re)

6.4Ω/13.0Ω

Electromagnetic Q (Qes)

0.758

Mechanical Q (Qms)

9.36

Total Q (Qts)

0.7

Compliance Equivalent Volume (VAS)

104 Litr

Surface Area of Cone (Sd)

510cm2

Reference Efficiency (ηo)

1.7%

Voice Coil Diameter

1.5”

Overhang (Xmax)

1.5 mm

Moving Mass (Mms)

35.23gm

BL Product (BL)

9.7TM

Coil Inductance (Le)

0.79mH

Overall Diameter

311 mm

Depth

130 mm

Baffle Hole Diameter

285 mm

Bolt Mount Diameter (PCD)

292 mm (8 Bolts)

Weight

3.20kg
