Speakers

Professional PA Speakers

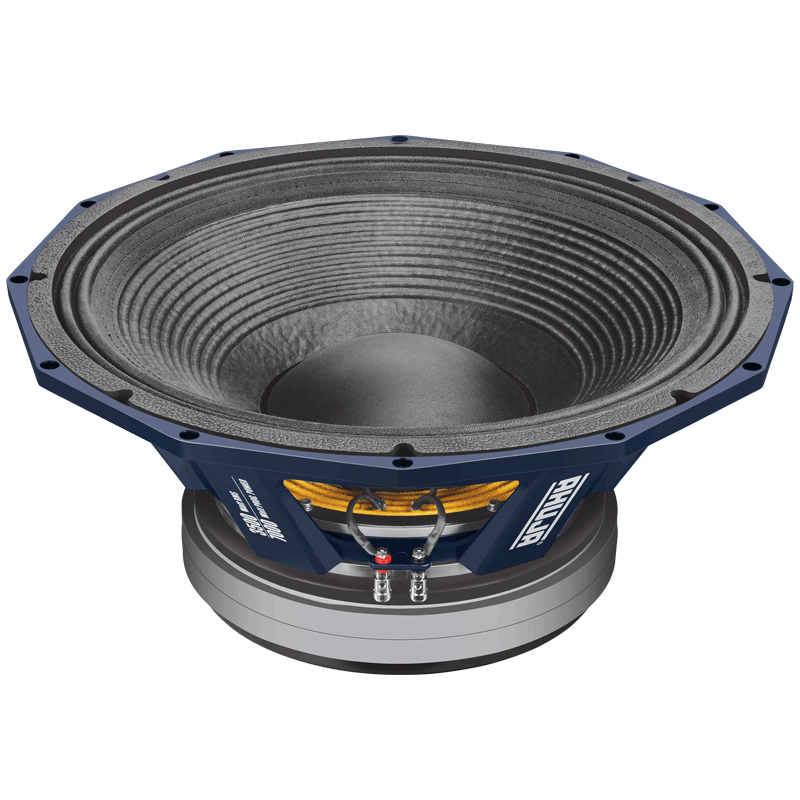

L21-SW3500

3500 WATTS

Super Power 21” Extended Low Frequency Speaker

  • Highly Powerful & Efficient Speaker with Extended Low Frequency Response.
  • For use in Professional Very High Power Sub-Woofer Speaker Systems.
  • 15.24cm (6”) I/O copper voice coil for efficient and reliable performance.
  • Vented Aluminium Die-cast frame and robust construction.
  • Heavy duty dual ferrite magnet with rigid magnet assembly.
  • Composite treated cone paper with plasticized cloth cone edge for extra strength and reliability.
  • Glass Fibre former voice coil for withstanding high temperature.
  • Chrome plated push type heavy duty terminals for reliable connection.

Power Rating

3500W RMS/7000W Programme

Nominal Diameter

533mm (21”)

Nominal Impedance

8Ω

Sensitivity (1W/1m )

98dB

Resonant Frequency (Fs)

35Hz

DC Resistance (Re)

5.6Ω

Electromagnetic Q (Qes)

0.183

Mechanical Q (Qms)

6.52

Total Q (Qts)

0.178

Compliance Equivalent Volume (VAS)

169 Litr

Surface Area of Cone (Sd)

1735cm2

Reference Efficiency (ηo)

4.11%

Voice Coil

6.0”

Overhang (Xmax)

8.35 mm

Moving Mass (Mms)

487.23gm

BL Product (BL)

57.96TM

Coil Inductance (Le)

5.50mH

Overall Diameter

573 ×555 mm

Depth

246 mm

Baffle Hole Diameter

498 mm

Bolt Mount Diameter (PCD)

550 ×520 mm

Weight

36.80kg

Operation Manual

3252 KB

Speakers : Professional PA Speakers
L21-SW3500
3500 WATTS
Super Power 21” Extended Low Frequency Speaker
FEATURES :
  • Highly Powerful & Efficient Speaker with Extended Low Frequency Response.
  • For use in Professional Very High Power Sub-Woofer Speaker Systems.
  • 15.24cm (6”) I/O copper voice coil for efficient and reliable performance.
  • Vented Aluminium Die-cast frame and robust construction.
  • Heavy duty dual ferrite magnet with rigid magnet assembly.
  • Composite treated cone paper with plasticized cloth cone edge for extra strength and reliability.
  • Glass Fibre former voice coil for withstanding high temperature.
  • Chrome plated push type heavy duty terminals for reliable connection.
SPECIFICATIONS :

Power Rating

3500W RMS/7000W Programme

Nominal Diameter

533mm (21”)

Nominal Impedance

8Ω

Sensitivity (1W/1m )

98dB

Resonant Frequency (Fs)

35Hz

DC Resistance (Re)

5.6Ω

Electromagnetic Q (Qes)

0.183

Mechanical Q (Qms)

6.52

Total Q (Qts)

0.178

Compliance Equivalent Volume (VAS)

169 Litr

Surface Area of Cone (Sd)

1735cm2

Reference Efficiency (ηo)

4.11%

Voice Coil

6.0”

Overhang (Xmax)

8.35 mm

Moving Mass (Mms)

487.23gm

BL Product (BL)

57.96TM

Coil Inductance (Le)

5.50mH

Overall Diameter

573 ×555 mm

Depth

246 mm

Baffle Hole Diameter

498 mm

Bolt Mount Diameter (PCD)

550 ×520 mm

Weight

36.80kg
