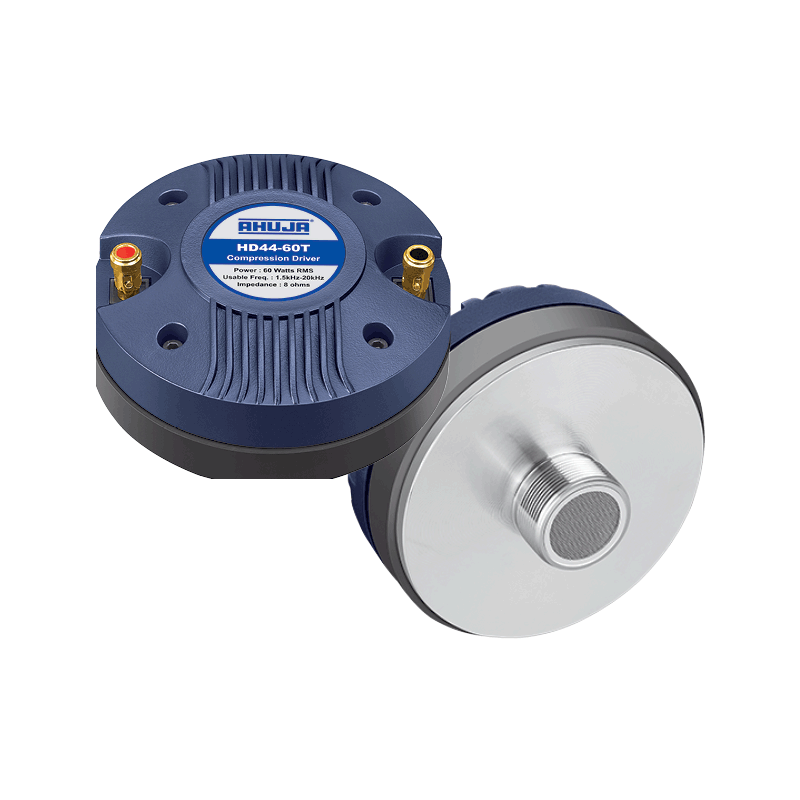

Professional compression driver HD44-60T, suitable for high power speakers. It features TITANIUM diaphragm round aluminium wire voice coil and strontium ferrite magnet for high SPL & superb HF response. With a suitable horn it is ideal for use with low frequency speakers AHUJA L12-MB300, L12-MB400, L15-MB300,
L15-MB400 and L15-MB550.
|
Power Capacity |
60W RMS |
|
Throat Diameter |
25.4 mm (1”) |
|
Nominal Impedance |
8Ω |
|
Sensitivity (1W/1m ) |
106dB (with Horn) |
|
Usable Frequency Range |
1,500-20,000Hz |
|
Recommended Crossover |
2.5kHz, 18db/Octave |
|
Voice Coil Diameter |
44.4 mm (1.74”) |
|
Diaphragm Material |
Titanium |
|
Voice coil Material |
Round Aluminium Wire |
|
Voice Coil Former |
Resin Bonded Kapton |
|
Throat Coupling |
1-3/8” 18TPI, Throat Couple No.1 |
|
Overall Dimensions |
Ø114 × H67.5 mm |
|
Weight |
1.51kg |
