Speakers

PA Drivers

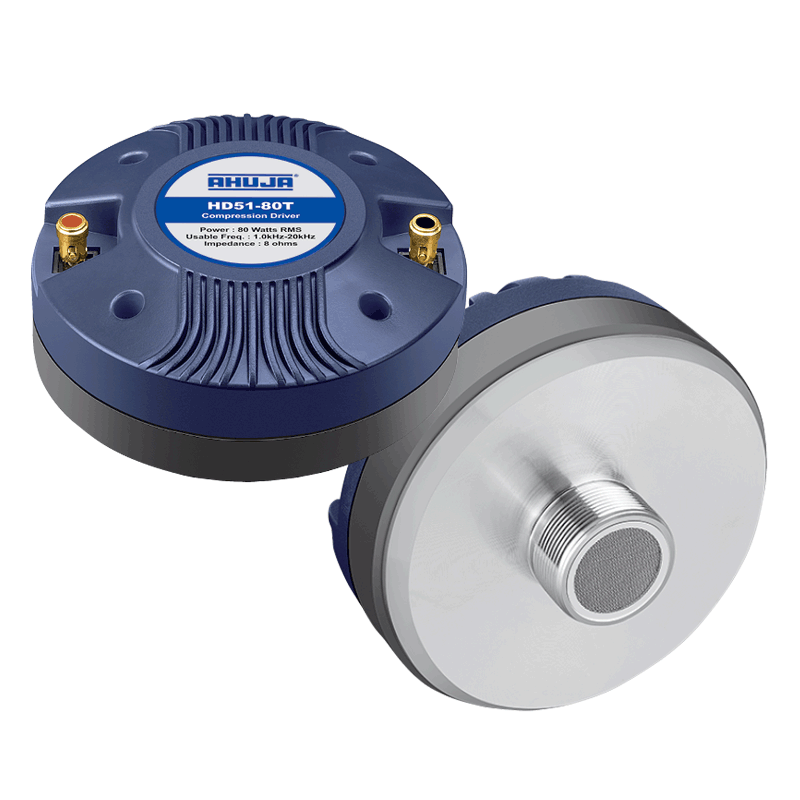

HD51-80T

80 WATTS

PA Drivers

  • Professional compression driver HD51-80T, suitable for high power speakers. It features TITANIUM diaphragm round aluminium wire voice coil and strontium ferrite magnet for high SPL & superb HF response. With a suitable horn it is ideal for use with low frequency speakers AHUJA L12-MB400, L15-MB300, L15-MB400, L15-MB550, L15-MB700, N12-MB600X and N12-MB600Z.

Power Capacity

80W RMS

Throat Diameter

25.4 mm (1”)

Nominal Impedance

8Ω

Sensitivity (1W/1m )

108dB (with Horn)

Usable Frequency Range

1,000-20,000Hz

Recommended Crossover

2.5kHz, 18db/Octave

Voice coil Diameter

51.0 mm (2.0”)

Diaphragm Material

Titanium

Voice coil Material

Round Aluminium Wire

Voice Coil Former

Resin Bonded Kapton

Throat Coupling

1-3/8” 18TPI, Throat Couple No.1

Overall Dimensions

Ø133 × H75 mm

Weight

2.50kg

Speakers : PA Drivers
HD51-80T
80 WATTS
PA Drivers
FEATURES :
  • Professional compression driver HD51-80T, suitable for high power speakers. It features TITANIUM diaphragm round aluminium wire voice coil and strontium ferrite magnet for high SPL & superb HF response. With a suitable horn it is ideal for use with low frequency speakers AHUJA L12-MB400, L15-MB300, L15-MB400, L15-MB550, L15-MB700, N12-MB600X and N12-MB600Z.
SPECIFICATIONS :

Power Capacity

80W RMS

Throat Diameter

25.4 mm (1”)

Nominal Impedance

8Ω

Sensitivity (1W/1m )

108dB (with Horn)

Usable Frequency Range

1,000-20,000Hz

Recommended Crossover

2.5kHz, 18db/Octave

Voice coil Diameter

51.0 mm (2.0”)

Diaphragm Material

Titanium

Voice coil Material

Round Aluminium Wire

Voice Coil Former

Resin Bonded Kapton

Throat Coupling

1-3/8” 18TPI, Throat Couple No.1

Overall Dimensions

Ø133 × H75 mm

Weight

2.50kg
