Speakers

PA Drivers

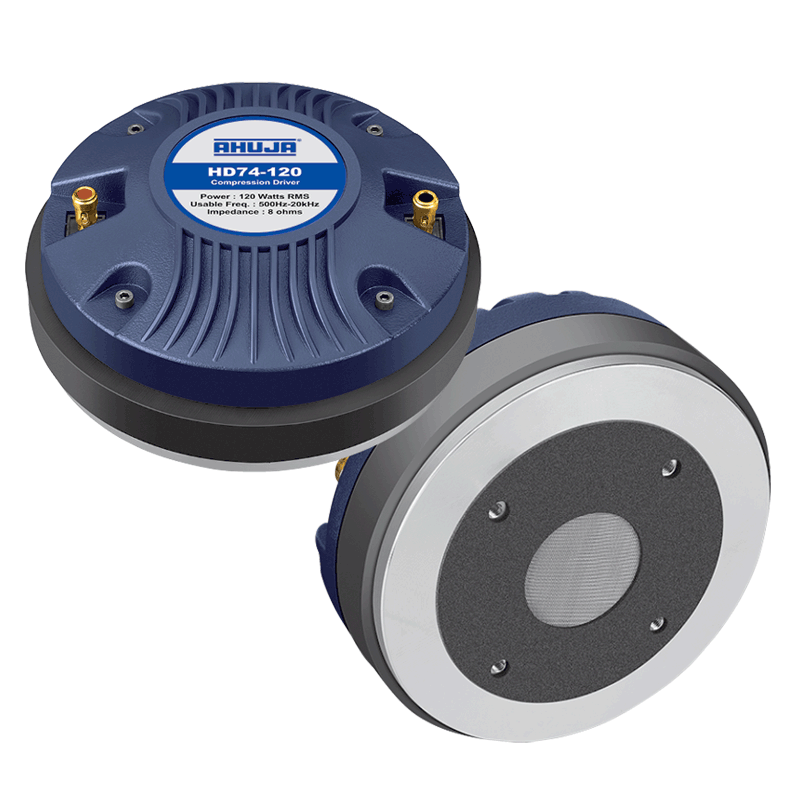

HD74-120

120 WATTS

PA Drivers

  • Professional compression driver HD74-120, suitable for high power speakers. It features TITANIUM diaphragm copper clad aluminium ribbon wire voice coil and strontium ferrite magnet for high SPL & superb HF response. With a suitable horn it is ideal for use with low frequency speakers AHUJA L15-MB550, L15-MB700, L15-MB900, N12-MB600X and N12-MB600Z.

Power Capacity

120W RMS

Throat Diameter

50 mm (2”)

Nominal Impedance

8Ω

Sensitivity (1W/1m

108dB (with Horn)

Usable Frequency Range

500Hz - 20,000Hz

Recommended Crossover

1.2kHz, 18 dB/Octave

Voice coil Diameter

74.0 mm (2.91”)

Diaphragm Material

Titanium

Voice coil Material

CCAR Wire

Voice Coil Former

Resin Bonded Kapton

Overall Dimensions

Ø178 × H73 mm

Weight

5.10kg

Speakers : PA Drivers
HD74-120
120 WATTS
PA Drivers
FEATURES :
  • Professional compression driver HD74-120, suitable for high power speakers. It features TITANIUM diaphragm copper clad aluminium ribbon wire voice coil and strontium ferrite magnet for high SPL & superb HF response. With a suitable horn it is ideal for use with low frequency speakers AHUJA L15-MB550, L15-MB700, L15-MB900, N12-MB600X and N12-MB600Z.
SPECIFICATIONS :

Power Capacity

120W RMS

Throat Diameter

50 mm (2”)

Nominal Impedance

8Ω

Sensitivity (1W/1m

108dB (with Horn)

Usable Frequency Range

500Hz - 20,000Hz

Recommended Crossover

1.2kHz, 18 dB/Octave

Voice coil Diameter

74.0 mm (2.91”)

Diaphragm Material

Titanium

Voice coil Material

CCAR Wire

Voice Coil Former

Resin Bonded Kapton

Overall Dimensions

Ø178 × H73 mm

Weight

5.10kg
